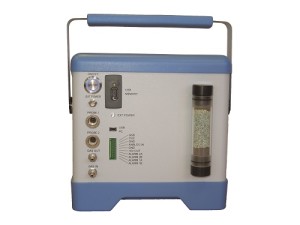

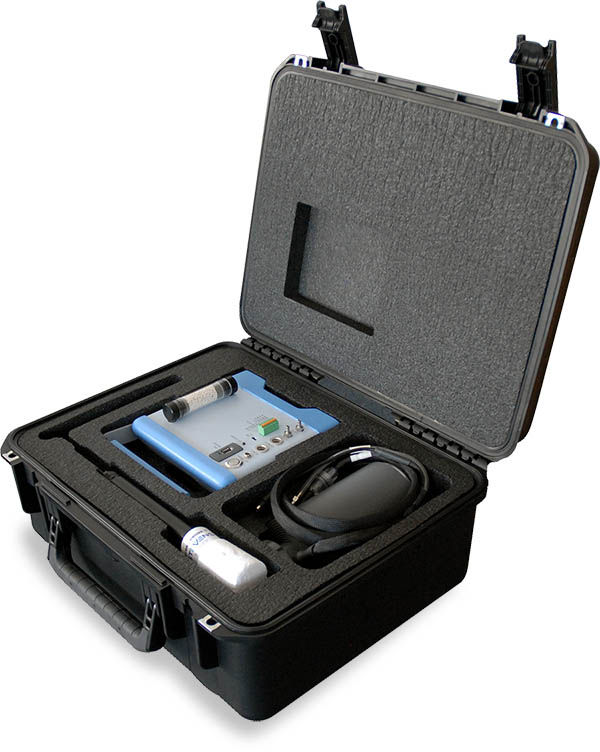

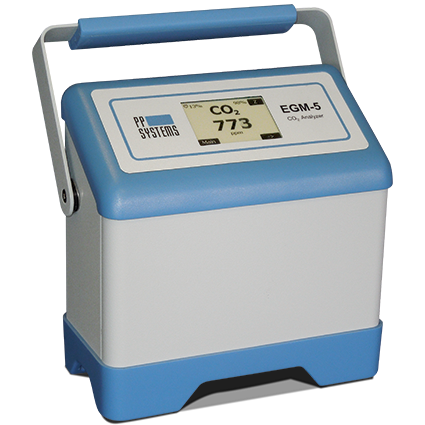

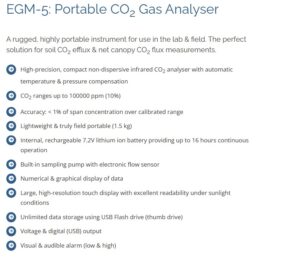

H010 Hansatech EGM-5: Portable CO2 Gas Analyser

Code: H010

The EGM-5 can be supplied with two different optical benches calibrated specifically to the range required. One bench is optimized for measurement ranges of CO2 up to 30000 ppm and another for ranges above 30000 up to 100000 ppm. For users that want to recalibrate the gas analyzer to a new level, this can easily be achieved as long as it is within the range for that particular optical bench.

The design of the EGM-5 ensures an inherent calibration stability that has been confirmed by over 35 years of experience in gas analysis technology. It features a non-dispersive, infrared measurement technique coupled with microprocessor based in signal processing resulting in precise measurement of CO2. Our innovative “Auto-Zero” technology and insulated, thermostatically controlled optical bench ensures fast warm-up, long term stability, accuracy and analyzer calibration.

The EGM-5 is an extremely versatile instrument that can be used with a range of optional sensors and chambers adding to measurement capability. The currently available options include:

H2O Sensor
O2 Sensor
Quantum Sensor
Temperature and PAR Probe

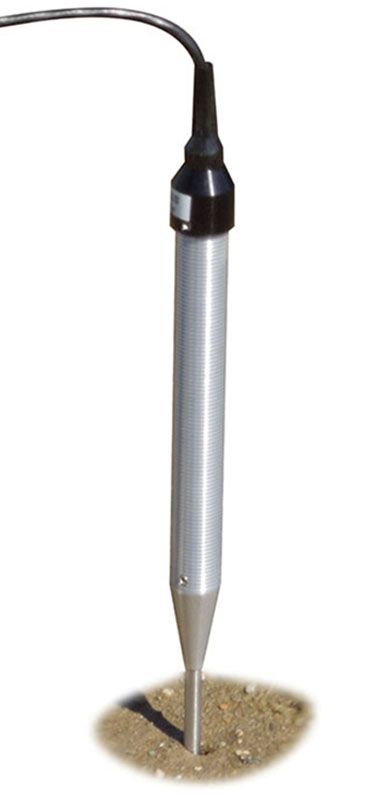

Soil Temperature

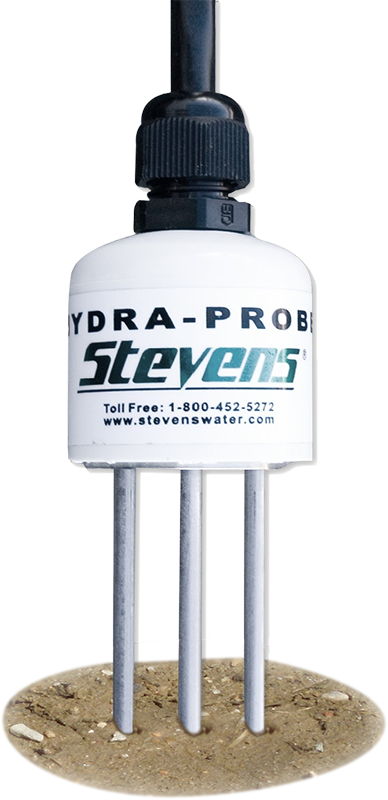

Soil Moisture

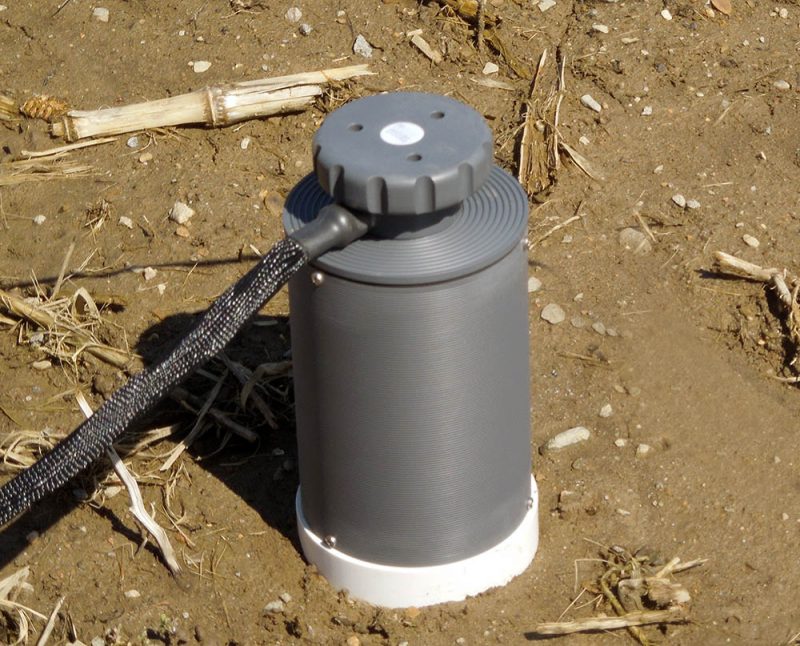

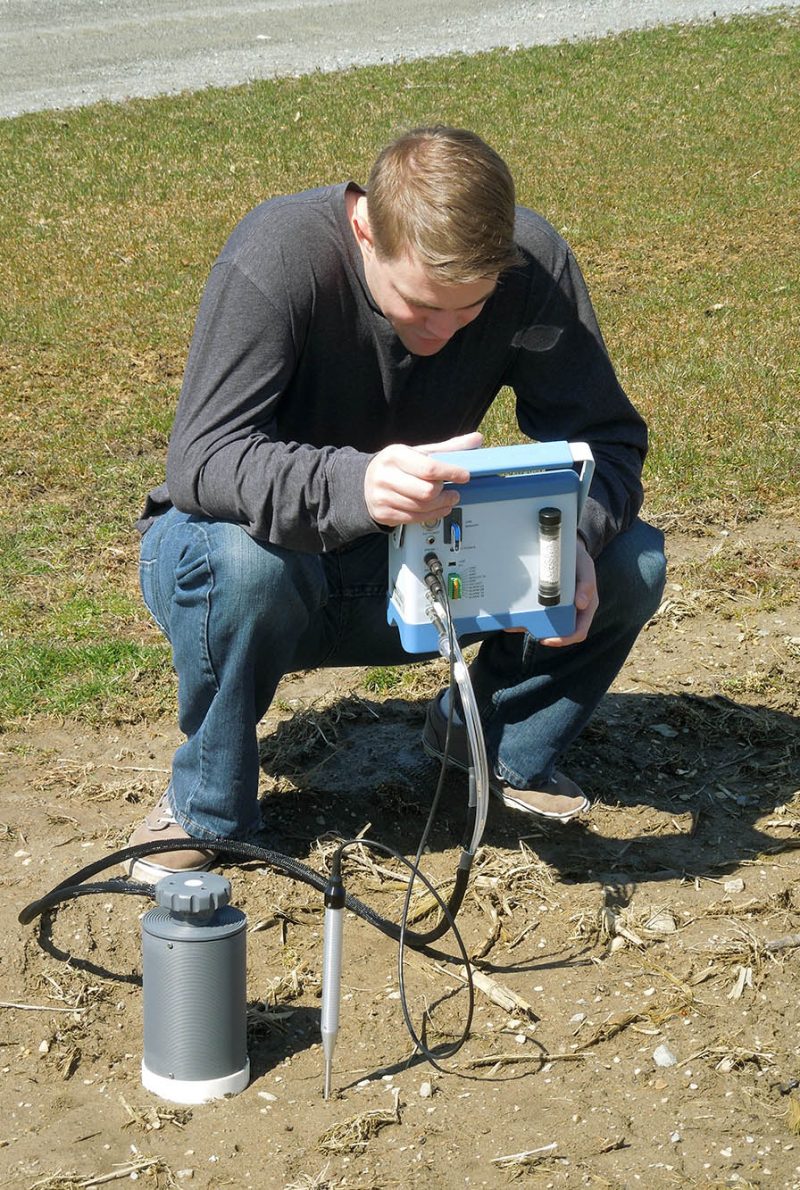

Soil Respiration Chamber for soil CO2 efflux

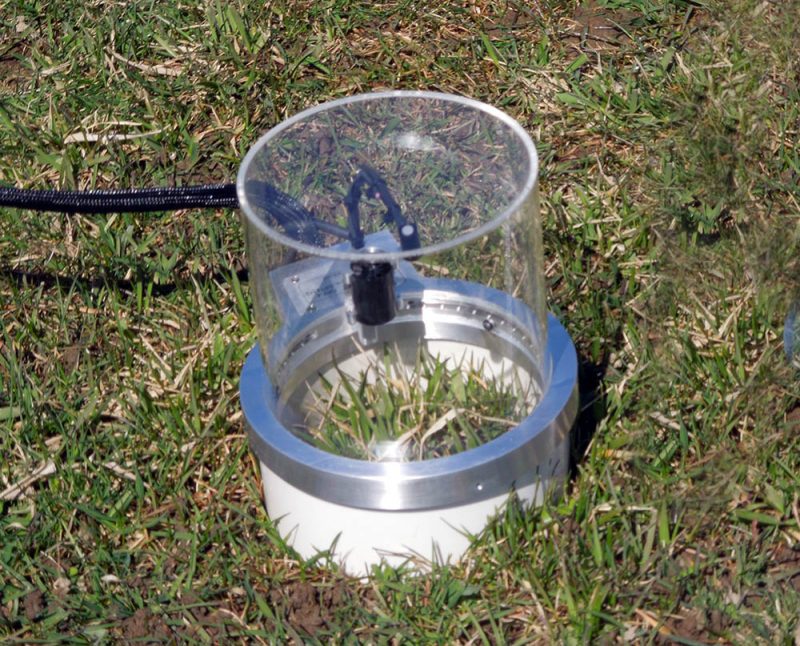

Canopy Assimilation Chamber for net canopy flux

Applications
Ambient CO2 monitoring
Soil CO2 efflux
Net canopy flux
Borehole monitoring of CO2
Global change studies
CO2 sequestration
Forest & agricultural meteorology
Air-sea surface exchange (pCO2)
Animal/insect respiration
Environmental toxicology
Volcanology
Bioremediation
