DT021 Delta-T LWS-SDI12-03 TekBox Leaf Wetness Sensor Advanced Automatic Weather Station System

Mimics the wetness state of a real leaf
Measurement range: 0% to 100%
Measurement response: 1 sec
SDI-12 Standard V1.3
Plug and Play
6 – 16V supply voltage
Less than 40µA idle current
Operating Temperature Range: –40°C to +80°C

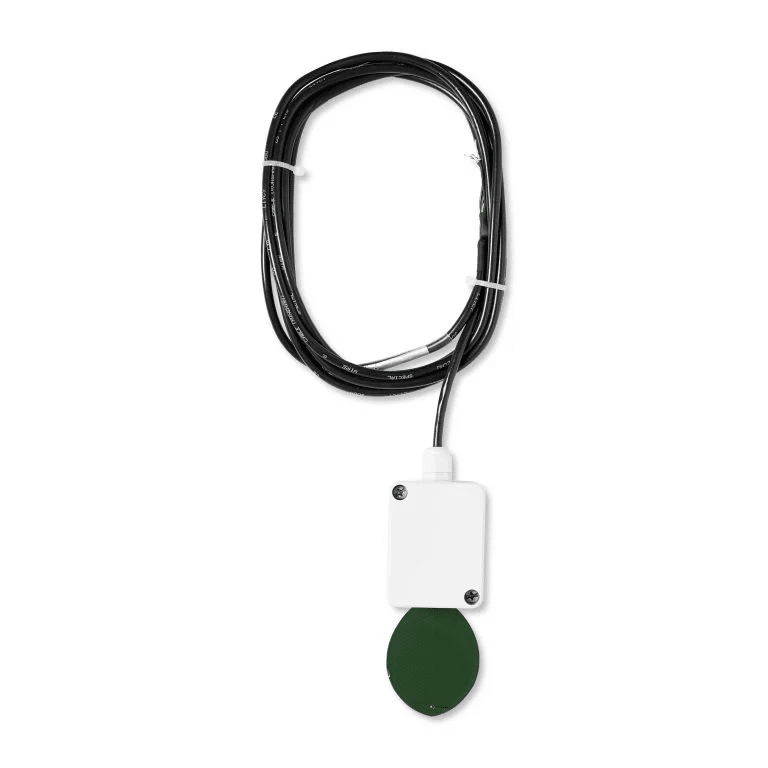

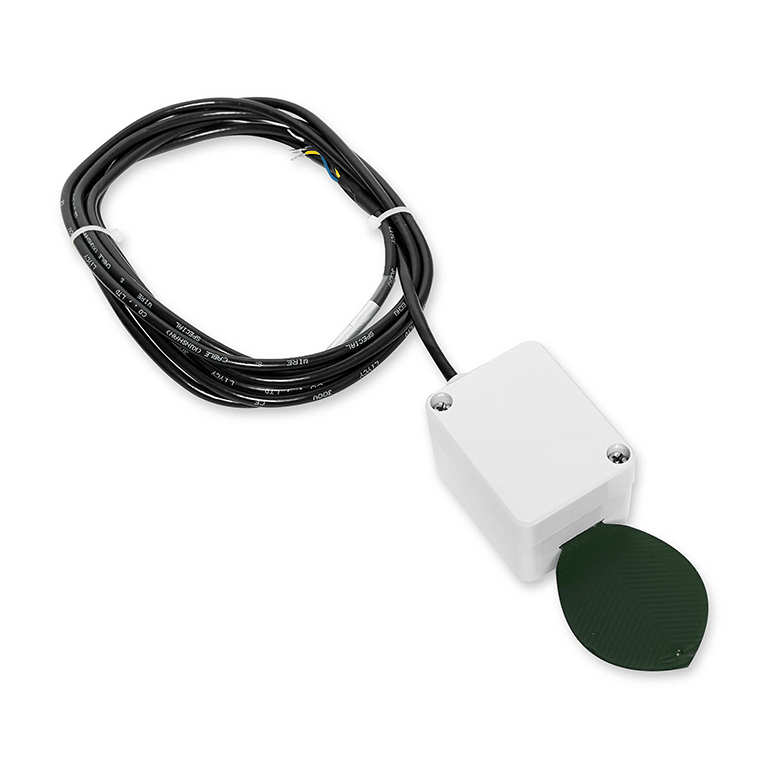

The Tekbox leaf wetness sensor mimics the wetness state of a real leaf. The measurement value is proportional to the percentage of the sensor surface covered with water.

The sensor is equipped with a SDI-12 interface for measurement and calibration.

In case of a standalone application, a built-in temperature sensor can be queried for air temperature measurement. It is however no replacement for a dedicated air temperature sensor / radiation shield set up.

The sensor is ideal for SDI-12 agricultural yield applications.
